Floor-to-Floor · Cover System
Dseal StarGuard
StarGuard is a robust, low-profile floor-to-floor expansion joint cover machined from ASTM 6063 T6 aluminium, delivering a clean, flush interior transition that comfortably absorbs everyday foot and light rolling traffic.

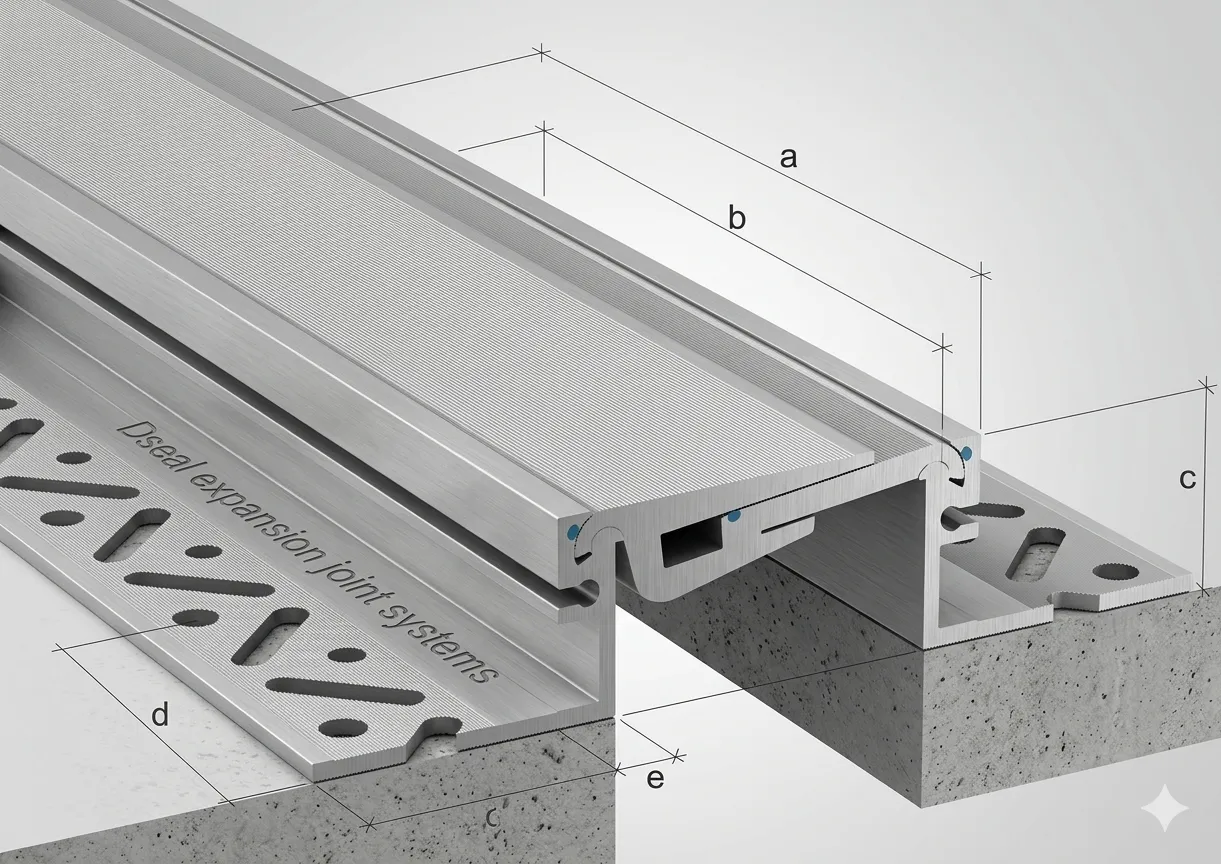

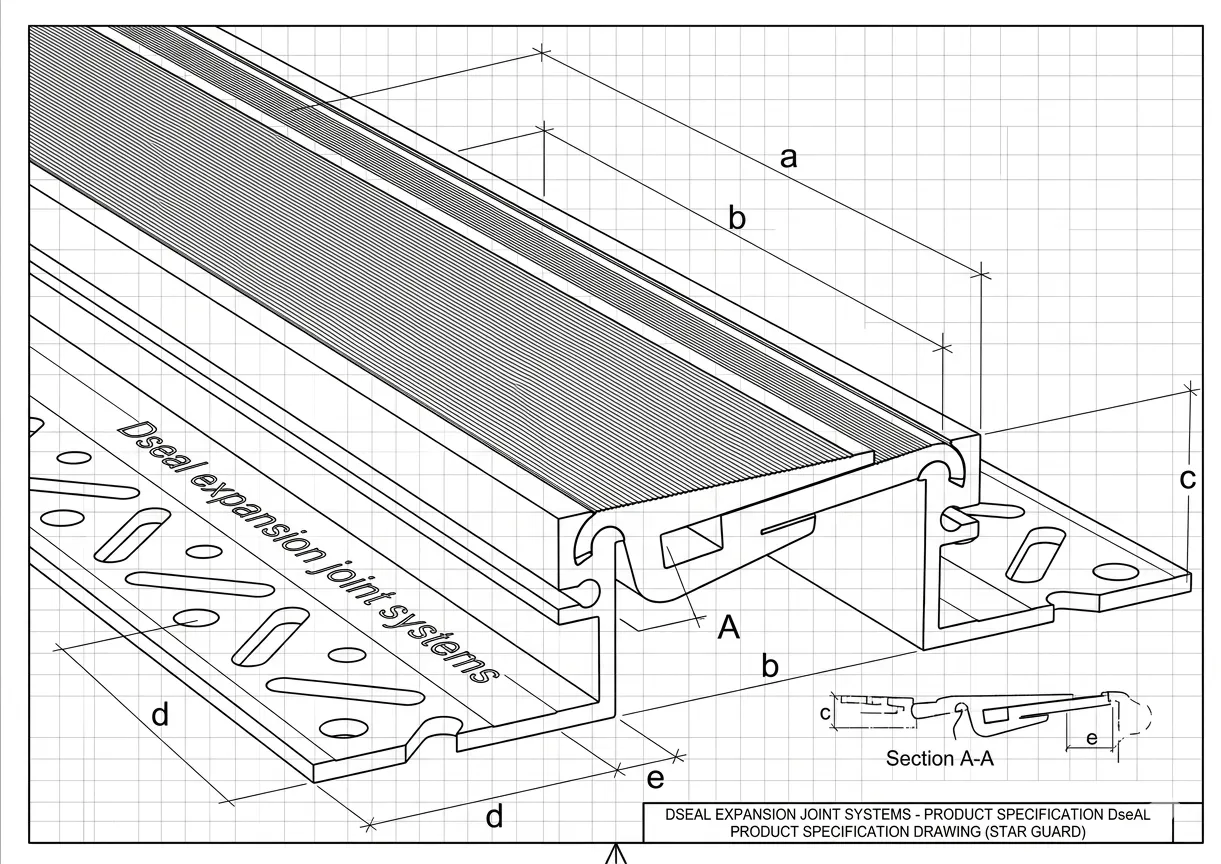

Click image to zoom · 2D blueprint, 3D render & product photo
Dseal StarGuard is a floor-to-floor expansion joint cover system engineered to bridge interior movement joints with a clean, low-profile finish. Extruded from ASTM 6063 T6 aluminium, it provides a durable, corrosion-resistant transition across slab joints in shops, offices, lobbies and corridors where a discreet, walkable cover is required.
StarGuard is built for interior commercial floors carrying foot and light rolling traffic, allowing the cover plate to flex and accommodate routine thermal and structural movement while staying flush with adjacent finishes. Its slim aluminium profile keeps the floor surface even and trip-free for everyday pedestrian use.
Key Benefits
- Low-profile aluminium cover keeps interior floors flush and trip-free
- ASTM 6063 T6 aluminium resists corrosion and wear for long service life
- Accommodates routine thermal and structural floor-to-floor movement
- Discreet finish blends neatly with most commercial floor coverings
- Simple, fast surface fixing suited to new build and refurbishment
- Easy to clean and maintain in busy public interiors
Applications
- Office building corridors and lobbies
- Retail showrooms and shopping-centre concourses
- Hotels, banquet halls and reception areas
- Institutional and educational building interiors
- Light-traffic commercial floors needing a discreet joint cover
Features & Construction
- Extruded ASTM 6063 T6 aluminium cover and frame profiles
- Slim, low-profile section for a near-flush floor transition
- Floor-to-floor configuration for level interior slab joints
- Pre-drilled fixing arrangement for accurate on-site anchoring
- Mill-finish aluminium suited to commercial interior environments
Technical Specifications
| Type | Floor-to-floor cover |
|---|---|
| Material | ASTM 6063 T6 aluminium |
| Application | Interior floors |
Installation Guide
- Clean both joint edges, removing concrete laitance, grout and debris from the joint and anchor zone.
- Position the StarGuard frame profiles along each edge so they sit flush and level with the finished floor.
- Mark, drill and fix the profiles into the slab through the pre-drilled holes using suitable anchors.
- Check that both sides are parallel and level with a consistent gap before final tightening.
- Seat the aluminium cover plate into the frame along the full length of the joint.
- Clean the finished joint and verify the cover sits flush with adjacent floor finishes.
Maintenance & Care
StarGuard requires minimal upkeep. Clean the aluminium cover periodically with a neutral detergent diluted in water and rinse with clean water; avoid acidic (hydrochloric or hydrofluoric) cleaners, which attack aluminium.
Inspect the cover and fixings during routine facility checks. Re-tighten any loose anchors and replace a damaged cover section without disturbing the fixed frame, keeping the floor in service with minimal downtime.
FAQs
StarGuard — Frequently Asked Questions
What is the Dseal StarGuard floor expansion joint cover?
StarGuard is a floor-to-floor expansion joint cover system made from ASTM 6063 T6 aluminium. It bridges interior slab movement joints with a low-profile, flush cover for foot and light rolling traffic in commercial buildings.
What material is StarGuard made from?
StarGuard is extruded from ASTM 6063 T6 aluminium, a corrosion-resistant alloy well suited to interior commercial floors. The aluminium gives a durable, low-maintenance cover with a clean mill finish.
What type of joint is StarGuard designed for?
StarGuard is a floor-to-floor system for level interior slab joints, where two floor sections meet on the same plane. It keeps the transition flush so pedestrians and light trolleys pass over smoothly.
How much traffic can StarGuard handle?
StarGuard is rated for foot traffic and light rolling loads such as trolleys and carts in commercial interiors. For vehicular or heavy rolling loads, Dseal recommends heavier systems such as LoadMaster or JointMaster.
Is StarGuard suitable for outdoor use?
StarGuard is designed primarily for interior commercial floors. For exposed or weather-affected joints, the Dseal team can recommend an externally rated cover or seal suited to your conditions.
Does StarGuard sit flush with the floor?
Yes. Its slim, low-profile aluminium section is designed to finish near-flush with adjacent floor coverings, giving a clean, trip-free transition across the joint.
How is StarGuard installed?
The aluminium frame profiles are fixed level along each joint edge through pre-drilled holes, then the cover plate is seated into the frame. The full step-by-step is in the Installation Guide above.
Can StarGuard be used in refurbishment projects?
Yes. Its surface-fixed design suits both new construction and refurbishment, allowing a tidy joint cover to be added to existing interior floors with minimal disruption.
What is the difference between StarGuard and JackGuard?
Both are floor-to-floor aluminium covers for interior and commercial floors. StarGuard is tuned as a low-profile cover for foot and light rolling traffic, while JackGuard is a more robust horizontal floor-to-floor solution for commercial and industrial settings.
Does StarGuard need a special floor finish?
No. StarGuard works with most common commercial floor finishes such as tile, stone, vinyl and screed, finishing flush against the adjacent surface for a neat appearance.
Are custom sizes available for StarGuard?
Yes. Dhawan Associates manufactures Dseal profiles in-house and can supply StarGuard tailored to your joint width and floor build-up. Share your drawings with the team for a project-specific recommendation.
What maintenance does StarGuard require?
Very little. Clean periodically with a neutral detergent and water, avoid acidic cleaners, and check the fixings during routine inspections. Damaged cover sections can be swapped without removing the frame.
Does StarGuard comply with any standards?
StarGuard aluminium profiles are manufactured in compliance with ASTM B221-02 and the ASTM 6063 specification. Dseal manufacturing is certified to ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018.
Who manufactures Dseal StarGuard?
StarGuard is designed and manufactured in India by Dhawan Associates, makers of the Dseal range of building expansion joint systems and covers, with in-house capability for custom requirements.
Where can I buy StarGuard in India?
StarGuard is supplied across India directly by Dhawan Associates. Use the WhatsApp, Call or Email buttons on this page to request pricing, lead time and a project recommendation.
How do I get the StarGuard technical drawing and TDS?
Download the Technical Data Sheet from the specifications section above, or contact the Dseal team to request a detailed shop drawing matched to your floor build-up and joint conditions.
