Wall-to-Wall · Lock Profile
Dseal Aerostar
Aerostar is a wall-to-wall expansion joint cover with a lock profile that securely retains the cover in place, delivering a clean architectural line across interior and exterior walls.

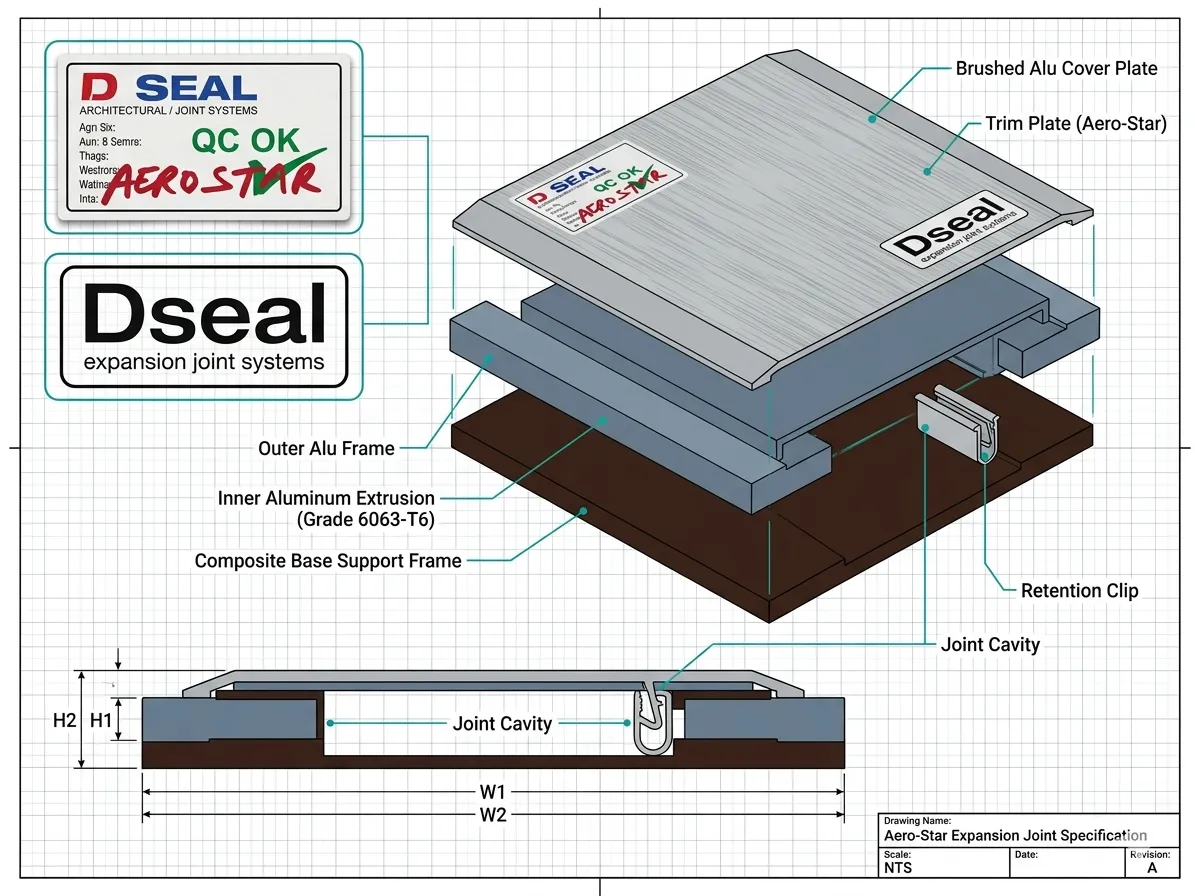

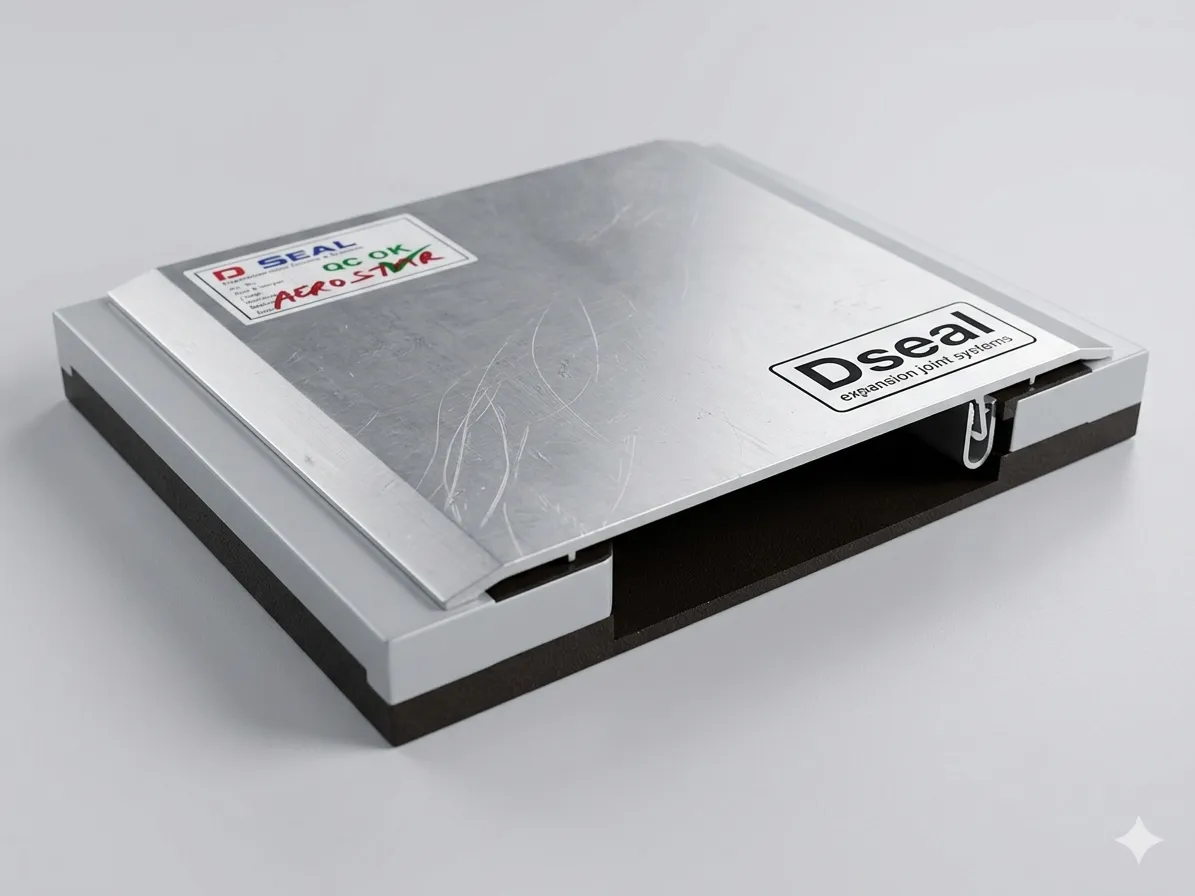

Click image to zoom · 2D blueprint, 3D render & product photo
Aerostar is a wall-to-wall expansion joint cover built around a lock profile and manufactured from ASTM 6063 T6 aluminium. The lock detail mechanically retains the cover over the joint gap, and the system is applied to interior and exterior walls of commercial and institutional buildings.
Aerostar combines secure cover retention with a clean architectural line. The locking profile keeps the cover firmly seated during movement, while the aluminium construction resists corrosion and maintains a crisp finished edge.
Key Benefits
- Lock profile keeps the cover securely retained during movement
- Clean architectural line suits visible wall locations
- ASTM 6063 T6 aluminium resists corrosion inside and out
- Reduces risk of cover dislodgement in high-traffic areas
- Works on both interior and exterior wall joints
- Manufactured and supported in India by Dseal
Applications
- Commercial corridors and high-traffic walls
- Hospitals and healthcare wall joints
- Educational campuses and institutional buildings
- Hotels and hospitality interiors
- Exterior facade and cladding wall joints
- Public buildings where cover security is important
Features & Construction
- Wall-to-wall cover with mechanical lock profile
- Extruded ASTM 6063 T6 aluminium construction
- Secure cover retention against accidental dislodgement
- Suited to interior and exterior wall applications
- Clean, continuous architectural edge line
Technical Specifications
| Type | Wall-to-wall (lock profile) |
|---|---|
| Material | ASTM 6063 T6 aluminium |
| Application | Interior / exterior walls |
Installation Guide
- Check joint width and confirm both wall faces are sound
- Clean the surfaces and remove dust or loose material
- Fix the base or lock-receiving members to each wall side
- Align the cover profile over the joint gap
- Engage the lock profile so the cover is firmly retained
- Seal the perimeter where the application requires it
- Verify the locked cover is secure and the line is straight
Maintenance & Care
Aerostar is low-maintenance. Clean the aluminium cover with a soft cloth and mild detergent, and periodically confirm the lock profile remains fully engaged and the cover seated along the run.
If the cover is ever forced out of its lock during an extreme event, re-seat it and check the receiving members for damage. For replacement components, contact Dseal (Dhawan Associates), who manufacture Aerostar to order.
FAQs
Aerostar — Frequently Asked Questions
What is Aerostar?
Aerostar is a wall-to-wall expansion joint cover from Dseal that uses a lock profile to securely retain the cover over the joint while presenting a clean architectural line.
What does the lock profile do?
The lock profile mechanically retains the cover so it stays firmly seated during wall movement, reducing the risk of dislodgement in busy areas.
What material is Aerostar made from?
Aerostar is made from ASTM 6063 T6 aluminium, a corrosion-resistant grade well suited to both interior and exterior walls.
Where is Aerostar used?
Aerostar is applied to interior and exterior wall-to-wall joints in commercial, institutional and public buildings where secure cover retention matters.
What movement does Aerostar accommodate?
Aerostar accommodates the expansion and contraction movement of wall-to-wall joints while the lock profile keeps the cover seated throughout.
Can Aerostar be used on exterior walls?
Yes. Its ASTM 6063 T6 aluminium construction is corrosion-resistant, so Aerostar performs on both interior and exterior wall applications.
How do I maintain Aerostar?
Clean the aluminium with a soft cloth and mild detergent, and periodically confirm the lock profile is fully engaged and the cover seated correctly.
What standards apply to Aerostar?
Dseal manufactures Aerostar under ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018 certified processes, with aluminium to ASTM B221-02 / ASTM 6063.
How is Aerostar different from AeroGuard?
Aerostar adds a mechanical lock profile for secure cover retention, while AeroGuard is a low-profile architectural cover focused primarily on a slim, concealed finish.
How does Aerostar differ from ClampJoint?
Aerostar retains its cover with an integral lock profile, whereas ClampJoint uses a clip-joint clamping system and offers straight and corner configurations.
Are custom sizes available for Aerostar?
Yes. Dseal supplies Aerostar configured to your joint width and finish; share your project details with Dhawan Associates for a tailored solution.
Does Aerostar provide a fire or acoustic barrier?
Aerostar is the visible retained cover; where fire or acoustic separation is required, Dseal can recommend compatible barrier accessories for the joint.
Is Aerostar suitable for high-traffic areas?
Yes. The locking retention makes Aerostar a strong choice for corridors and public spaces where covers might otherwise be knocked loose.
Who manufactures Aerostar?
Aerostar is designed and made in India by Dhawan Associates under the Dseal brand.
Where can I buy Aerostar in India?
Aerostar is available directly from Dseal (Dhawan Associates) across India. Call +91 93109 97953 to discuss your requirements.
Can the Aerostar cover be removed for inspection?
Yes, the lock profile allows the cover to be released and re-seated for inspection or servicing of the joint when needed.
