Dseal SeismoGuard 100

SeismoGuard 100 is a heavy-duty, solid all-metal floor expansion joint cover for floors with large movement and heavy traffic — engineered to carry light fork-lift and pallet-truck loads while absorbing movement in three directions.

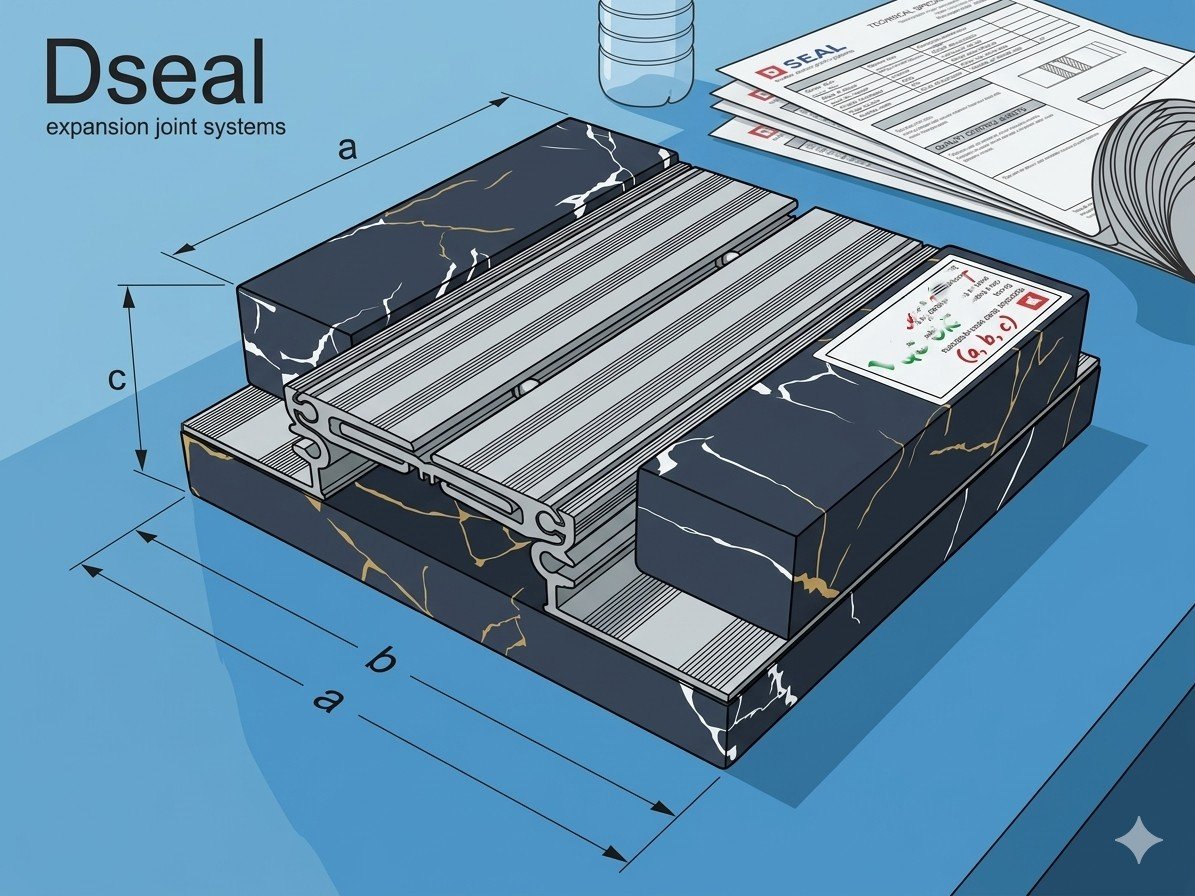

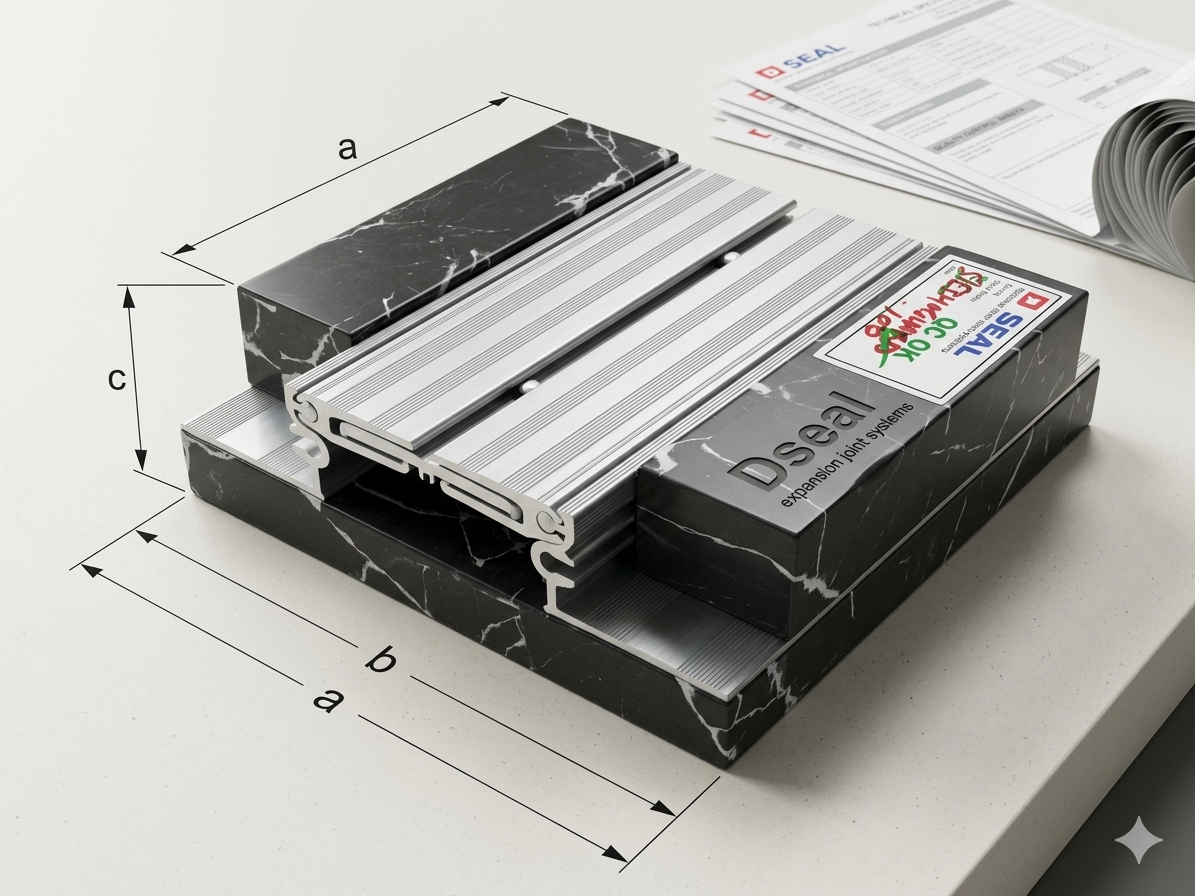

Click image to zoom · 2D blueprint & 3D render

Dseal SeismoGuard 100 is a solid, all-metal floor expansion joint cover engineered for floors that combine large movement with heavy traffic. It is built to be crossed by light fork-lift trucks and pallet trucks, bridging wide movement joints in industrial and logistics floors while carrying repeated wheel loading.

An articulated telescoping system absorbs movement in three directions, while the striated all-metal surface gives excellent skid resistance and a symmetrical, gap-free visible surface that resists dirt build-up. SeismoGuard 100 is hard-wearing, maintenance-free and long-lasting, and is available in installation heights of 20, 35, 50 and 90 mm.

Download Technical Data Sheet (PDF)Request Drawing

Key Benefits

Solid all-metal cover — hard-wearing, maintenance-free and long-lasting
Carries heavy traffic including light fork-lift and pallet trucks
Articulated telescoping system absorbs movement in three directions
Striated surface ensures reliable skid resistance underfoot and under wheel
Symmetrical, gap-free visible surface prevents accumulation of dirt
Large movement capacity of up to 45 mm across a 90 mm joint

Applications

Warehouses and logistics / distribution-centre floors
Industrial plant floors with fork-lift and pallet-truck traffic
Loading bays and goods-handling areas
Manufacturing and process floors with large structural movement
Heavy-duty commercial and infrastructure floors

Features & Construction

Solid all-metal expansion joint cover for large traffic loads
Articulated telescoping mechanism for multi-directional movement
Striated anti-skid visible surface, symmetrical and gap-free
MultiHole mounting bracket for secure fixing to the slab
Installation heights of 20 / 35 / 50 / 90 mm (larger heights on request)

Technical Specifications

Joint width (max)	90 mm
Total movement	45 mm (+/-22.5 mm)
Visible width	113 mm
Total width	200 mm
Installation height	20 / 35 / 50 / 90 mm
Load bearing capacity	12 kN
Production length	4 m
Standard colour	Aluminium

Download Technical Data Sheet (PDF)

Installation Guide

Clean and level both joint edges, removing concrete laitance, grout and debris from the joint and anchor zone.
Position the SeismoGuard 100 frame profiles along each edge, flush and level with the finished floor.
Mark, drill and secure the MultiHole mounting brackets into the slab using anchors rated for the traffic loading.
Confirm both sides are parallel and level with the correct joint gap before final tightening.
Fit the all-metal telescoping cover along the full joint length and check it transits flush for wheeled traffic.

Maintenance & Care

SeismoGuard 100 is a solid all-metal system built for tough industrial floors and needs minimal upkeep. Clear grit and debris from the joint regularly, wash with a neutral detergent diluted in water and rinse clean; avoid acidic cleaners on the aluminium components.

Inspect the cover and mounting brackets during routine floor checks, paying attention to high-turn and braking zones where wear concentrates. Re-tighten any loose anchors so the joint stays level and safe for fork-lift and pallet-truck traffic.

FAQs

SeismoGuard 100 — Frequently Asked Questions

What is Dseal SeismoGuard 100?

SeismoGuard 100 is a heavy-duty, solid all-metal floor expansion joint cover for floors with large movement and heavy traffic. It carries light fork-lift and pallet-truck loads while absorbing movement in three directions.

How much movement does SeismoGuard 100 accommodate?

It accommodates a total movement of 45 mm (+/-22.5 mm) across a maximum joint width of 90 mm, absorbed by its articulated telescoping system in three directions.

What load can SeismoGuard 100 carry?

SeismoGuard 100 has a load-bearing capacity of 12 kN and is designed to be used by light fork-lift trucks and pallet trucks on industrial and logistics floors.

What installation heights are available?

SeismoGuard 100 is available in installation heights of 20, 35, 50 and 90 mm. Larger installation heights are available on request.

Why is the surface striated?

The striated all-metal surface ensures good skid resistance for both foot and wheeled traffic, while the symmetrical, gap-free visible surface prevents the accumulation of dirt.

What are the overall dimensions?

The visible width is 113 mm and the total width is 200 mm, supplied in 4 m production lengths with a standard aluminium finish.

Where is SeismoGuard 100 used?

It suits warehouses, distribution centres, industrial plant floors, loading bays and other heavy-duty floors that combine large structural movement with fork-lift or pallet-truck traffic.

Who manufactures SeismoGuard 100?

SeismoGuard 100 is supplied in India by Dseal Solutions Private Limited. Use the WhatsApp, Call or Email buttons on this page to request pricing, drawings and a project recommendation.
